Autonics BW40-08P Area Sensor

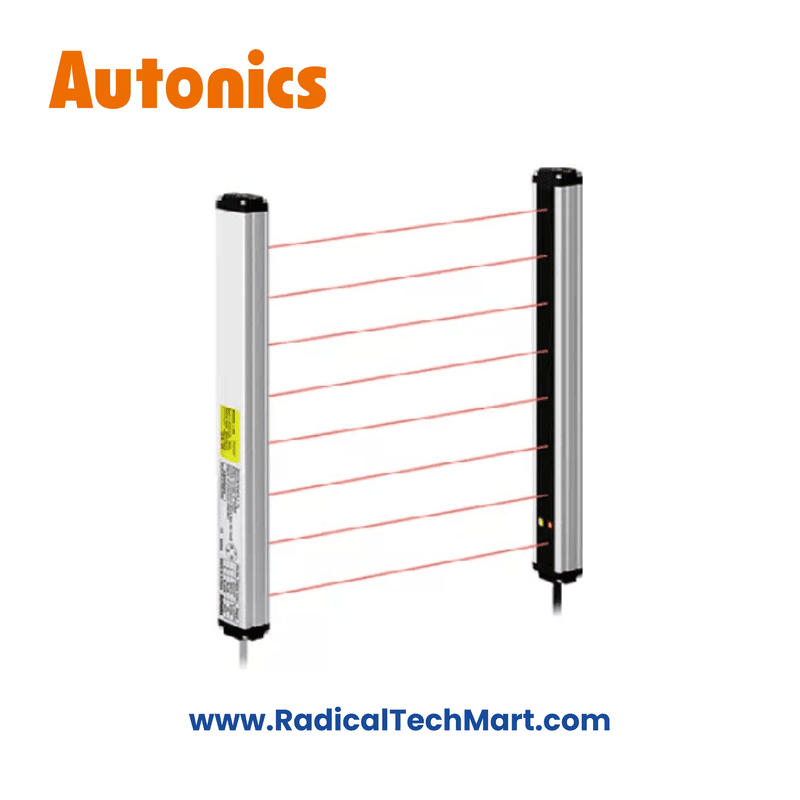

Autonics BW40-08P Through-Beam Area Sensor (40 mm Pitch, PNP Output)
Autonics BW40-08P is a through-beam area sensor with 8 optical axes and 40 mm pitch, designed for reliable object detection across medium sensing heights in industrial automation systems.
The Autonics BW40-08P is a through-beam type area sensor featuring 8 optical axes with 40 mm pitch, suitable for accurate detection of objects moving through a defined sensing area. It provides stable operation over long sensing distances and is well-suited for industrial automation environments.
With PNP open-collector output, IP65 protection, and built-in self-diagnostic and interference prevention functions, the BW40-08P delivers reliable performance in demanding applications.
Key Features
Through-beam area sensing (emitter + receiver)
40 mm optical axis pitch
8 optical axes
Sensing height: 280 mm
Long sensing distance up to 7 m
PNP open-collector output
Fast response time ≤ 10 ms
Optical axis misalignment alarm
MASTER/SLAVE interference prevention
IP65 protection (IEC standard)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BW40-08P |
| Sensing Method | Through-beam |
| Optical Axis Pitch | 40 mm |
| Number of Optical Axes | 8 |
| Sensing Height | 280 mm |
| Sensing Distance | 0.1 – 7 m |
| Light Source | Infrared LED (850 nm, modulated) |
| Output Type | PNP open collector |
| Operation Mode | Light ON |
| Response Time | ≤ 10 ms |
| Power Supply | 12–24 V DC |
| Current Consumption | ≤ 120 mA |
| Load Current | ≤ 100 mA |
| Protection Rating | IP65 |
| Operating Temperature | −10 to +55 °C |
Applications
Conveyor object detection
Packaging & wrapping machines
Counting & sorting systems
Material handling automation
Assembly line monitoring
What’s in the Box?
Emitter unit × 1
Receiver unit × 1
Mounting brackets
Fixing bolts
Instruction manual
FAQs
Q1. Is BW40-08P suitable for safety applications?
No. This is not a safety-rated light curtain.
Q2. What type of output does this model provide?
PNP open-collector output.
Q3. Can multiple BW40 sensors be installed close together?
Yes, using the MASTER/SLAVE interference prevention function.
Q4. What is the advantage of 40 mm pitch?
It is ideal for detecting larger objects over a wider area with fewer beams.
Q5. Are cables included with the sensor?
No. Connection cables are sold separately.
